QUADRIGA QC•View for Video

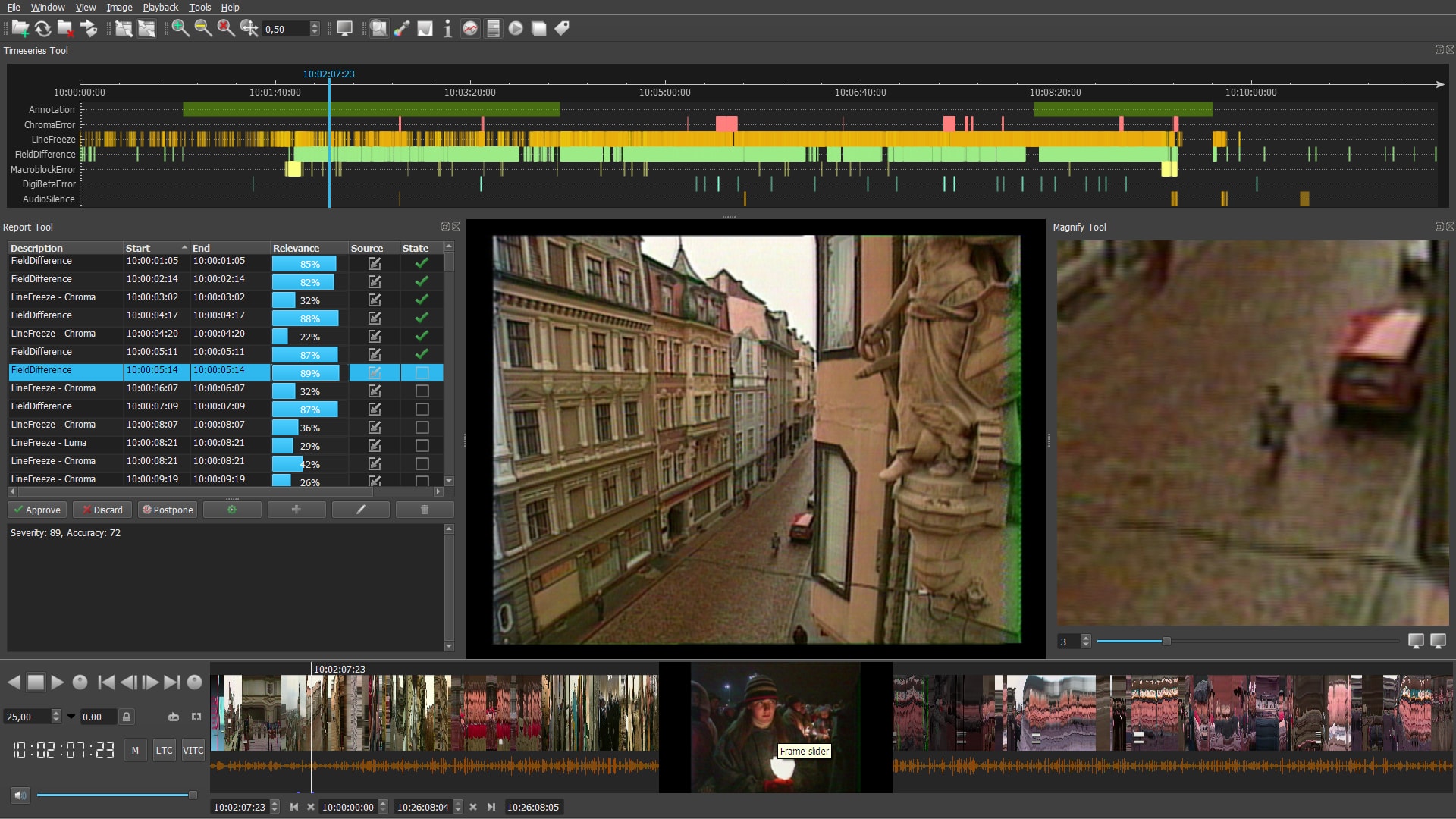

QUADRIGA QC•View for Video provides a synchronized view of a Video Master File together with its audio streams and frame accurate QC Metadata.
It streamlines user-controlled annotation and the media approval process, featuring a comprehensive toolset (Image Histogram, Magnification, Time-series, Report Table, Metadata Editor, Stripe-Image, Field-by-Field view, Thumbnail Preview, Precise Timecode Display showing Original Carrier VITC, LTC or Mediafile Timecode).
Flexible and precise transport control options support forward, backward, frame-by-frame, different loop modes and multiple playback speeds. The freely customisable user interface and multi-monitor setups allow switching between full screen mode and a window-based view.
By enabling human QC tasks QUADRIGA QC•View user benefits from CubeWorkflow's processing pipeline and the support for event-based watchdog notifications.
QUADRIGA QC•View provides user-definable keyboard shortcuts for every function, an SDI-output option for video reference monitor view and additional hardware like waveform monitors or vector scopes. It also offers support for a Jog / Shuttle hardware controller.
At a Glance
The Challenge
Within a highly automated media processing system, like the QUADRIGA•Video Workflow, an instance can come to a point, where it is not possible for the system to decide with absolute certainty how to handle the files. At this point, the media files according with its metadata has to be assess by a “human” operator.
The Solution
A QC player with a comprehensive toolset, I/O functionalities and workflow integration, which supports the QC operator getting his work done really fast.
Results
For most cases, QUADRIGA QC•View offers not only one view on the data to support the QC operator. He can choose the tools which support him in his way of doing the QC work the best.
Main Features
- Synchronized View of Audio, Video and frame accurate QC Metadata
- Streamlines User-controlled Annotation and Media Approval Process
- Integrates well as human task within the CubeWorkflow environment through flexible configurations
- Comprehensive Toolset: Image Histogram, Magnification, Time-series, Report Table, Metadata Editor, Stripe-Image, Field-by-Field view, Thumbnail Preview
- Precise Timecode Display showing Original Carrier VITC, LTC or Mediafile Timecode
- Full Screen Mode / Window-based View
- Freely customizable User Interface and Multi-Monitor Setups
- Flexible Transport Control options: forward, backward, frame-by-frame, different loop modes and multiple playback speeds
- User-definable Keyboard Shortcuts for every function
- SDI-Output Option for Video Reference Monitor View (features Blackmagic DeckLink Hardware)
- Support for Jog / Shuttle Hardware Controller
- Cube-Tec Uncompressed MXF (QUADRIGA•Video)
- IMX 30/40/50
- XDCAM HD422
- AVCI100
Supported Video Formats:
