Media-Inspectors
Calibration-Inspector•Audio
Calibration-Inspector is a fully automatic quality assessment system, developed in order to control and determine the quality of analog audio playback devices such as reel-to-reel machines, cassette tape players and turntables. The software supports simultaneous analysis of up to eight different playback devices.
The system is shipping with specially manufactured test media, suited for the respective analog playback devices and capable of analyzing various machine specific measurement parameters such as frequency response, speed deviation, wow & flutter, total harmonic distortion, to name but a few.

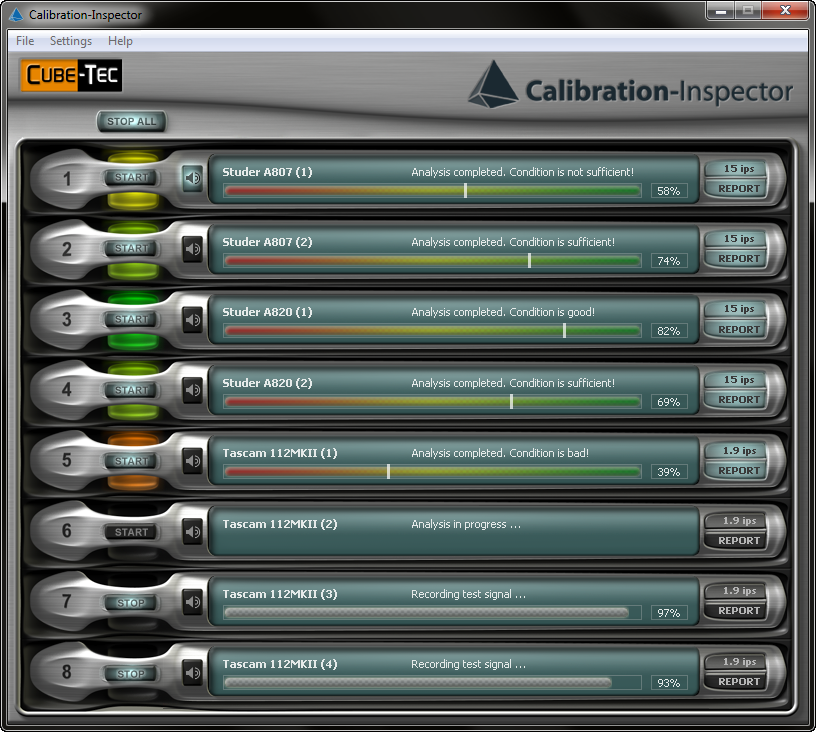

A clearly arranged user interface provides quick access to all connected playback devices and lets you efficiently control the assessment process.
Read more about Calibration-Inspector•Audio

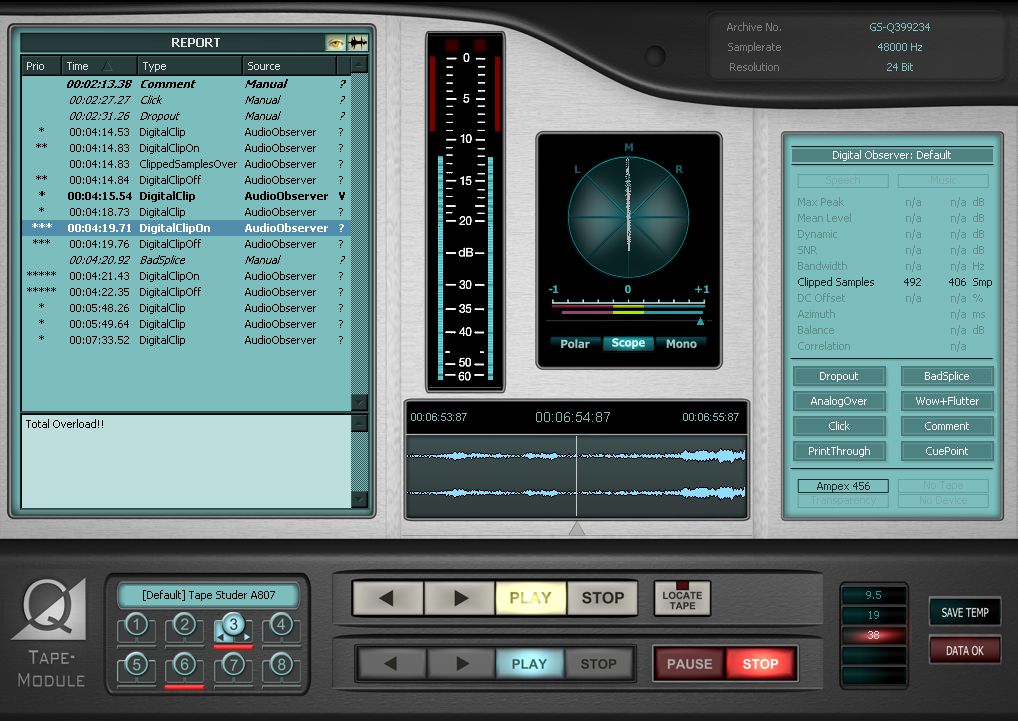

Audiofile•Inspector
Cube-Tec's Audiofile•Inspector technology is both implemented into the QUADRIGA ingest modules as a real-time analytical engine and into the DOBBIN Rendering Farm as a File Processing Unit, thus enabling a pure file based workflow. The QUADRIGA implementation provides the operator with instant feedback on possible quality issues, while the DOBBIN implementation allows for automatic quality inspection of large media collections. Both implementations can share the same parameter settings and can, to a large extent, generate identical results.
Read more about Audiofile•Inspector

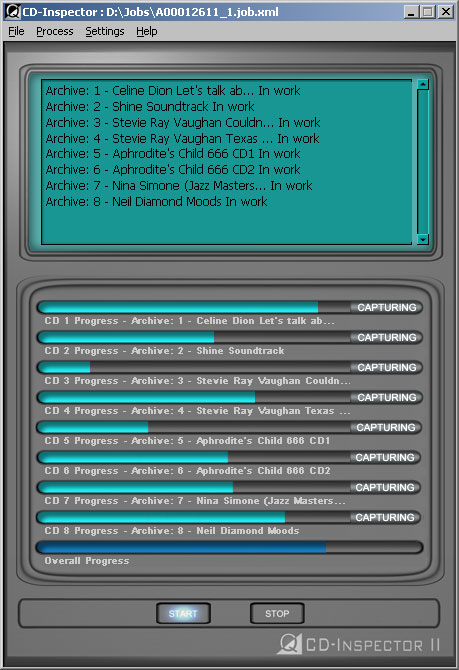

CD•Inspector
The second generation of the CD•Inspector software has a drastically enhanced feature set. Besides export capabilities to Broadcast Wave Format (BWF), Microsoft Wave and AIFF formats, the audio data can also be stored in PreMaster formats (DDP) and Intermediate Wave format for further processing. The entry of information to existing databases is simple by using our standardised XML format. The export of CD-Text as well as the recognition and saving of multisession CDs in an ISO image are standard with the CD•Inspector 2.0.

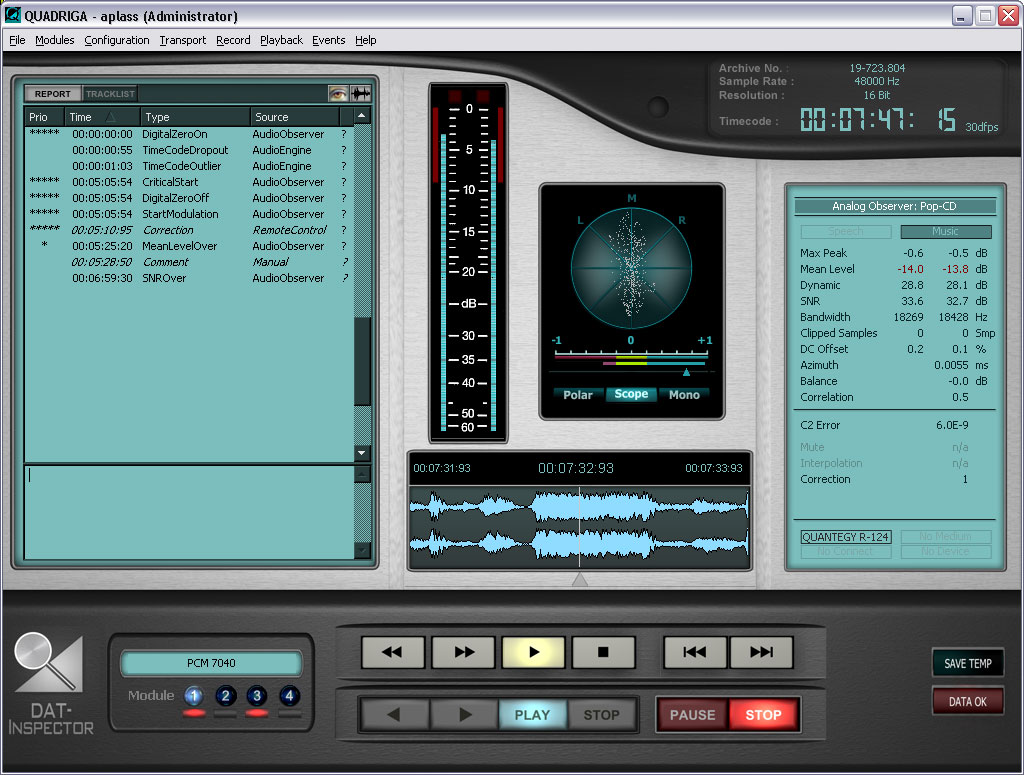

DAT•Inspector
DAT•Inspector is the first system available world wide which allows faster than real time transfers of DATs into digital archives. The DAT•Inspector handles all DAT tapes which contain valid time code information. Besides monitoring the audio stream itself, the DAT•Inspector also monitors the time code track. Time code jumps and invalid areas within the time code will be recognized and reported.

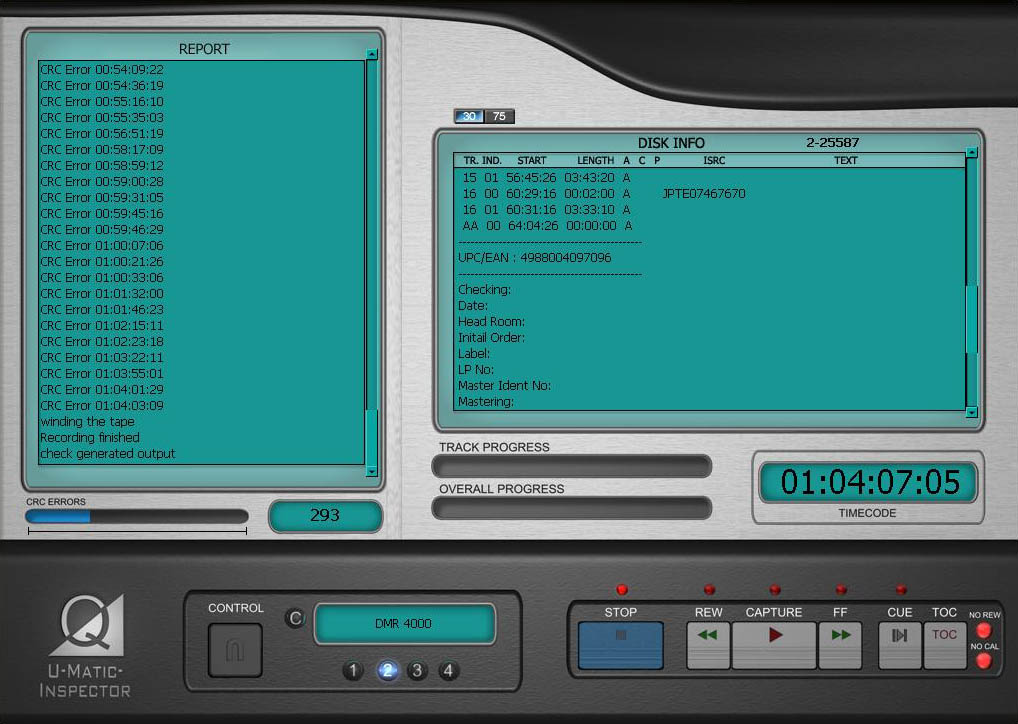

U-Matic•Inspector
U-Matic•Inspector is the most advanced software for controlled transfer of U-Matic PreMaster tapes and session tapes to digital archives. U-MaticDTA feeds the status (error output) of the U-Matic Recorder to the U-MaticCapture while the status is interpreted by U-Matic•Inspector software. U-MaticCapture also captures the AES outputs of the PCM1610/30 and converts the workstations RS 232 signal to Sony 9-Pin protocol.
